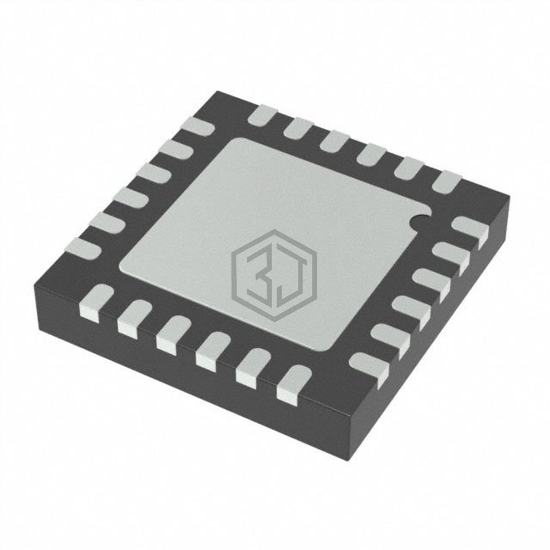

IC SWITCH QUAD SPST SPI 24LFCSP
ADGS5412BCPZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST SPI 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 24-VFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 6,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 530ns, 230ns |
| -3db Bandwidth | 160MHz |
| Charge Injection | 310pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS5412BCPZ | Analog Devices Inc. | IC SWITCH QUAD SPST SPI 24LFCSP | 100% | View |
| ADG5436FBRUZ | Analog Devices Inc. | IC SWITCH SPDT DUAL 16TSSOP | 82% | View |
| ADG5436FBCPZ-RL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 16LFCSP | 82% | View |
| ADG5436FBRUZ-RL7 | Analog Devices Inc. | IC SWITCH SPDT DUAL 16TSSOP | 82% | View |
| ADG5413FBRUZ-RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST BID 16TSSOP | 80% | View |
| ADG5412BFBRUZ-RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST BID 16TSSOP | 74% | View |
Submit your RFQ for ADGS5412BCPZ-RL7 and get a quote within 24 hours.
