FULLY INTEGRATED, 1.5 ? RON, 15

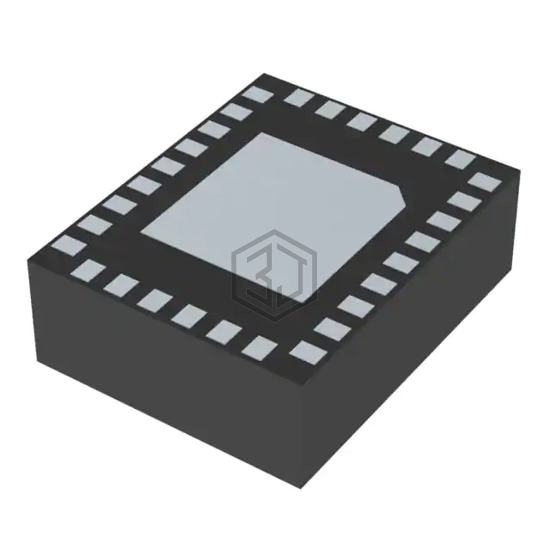

ADGS1414DBCCZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. FULLY INTEGRATED, 1.5 ? RON, 15. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 30-FLGA Exposed Pad, number of circuits 8.
In Stock: 8,598
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 20V, ±4.5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | 5V ~ 20V, ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 475ns, 190ns |
| -3db Bandwidth | 170MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 21pF |
| Current - Leakage (IS(off)) (Max) | 30pA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 30-FLGA Exposed Pad |
| Supplier Device Package | 30-LGA (4x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1414DBCCZ-RL7 | Analog Devices Inc. | FULLY INTEGRATED, 1.5 ? RON, 15 | 100% | View |
| HI4-0507/883 | Harris Corporation | 4-CHANNEL ANALOG MUX | 67% | View |
| HI4-0509/883 | Harris Corporation | 4-CHANNEL ANALOG MUX | 67% | View |
| HI4-0508/883X161 | Harris Corporation | SINGLE 8 CHANNEL CMOS ANALOG MUL | 63% | View |
| ADG5413FBCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPST QUAD 16LFCSP | 58% | View |
| HI4-0549/883 | Harris Corporation | QUAD DIFFERENTIAL MUX | 54% | View |
Submit your RFQ for ADGS1414DBCCZ and get a quote within 24 hours.
