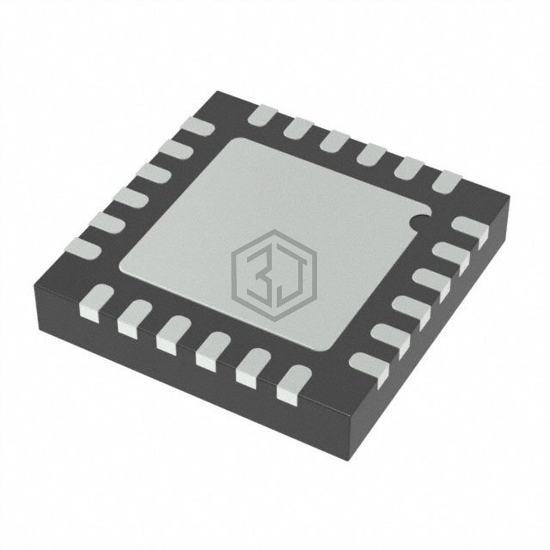

IC SWITCH DUAL 24LFCSP
ADGS1409BCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-VFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 8,171
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 165ns, 155ns |
| -3db Bandwidth | 115MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 14pF, 40pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1409BCPZ-RL7 | Analog Devices Inc. | IC SWITCH DUAL 24LFCSP | 100% | View |
| ADG5409BRUZ | Analog Devices Inc. | IC MULTIPLEXER 2 X 4:1 16TSSOP | 86% | View |
| ADG5409TCPZ-EP-RL7 | Analog Devices Inc. | IC MULTIPLEXER 2 X 4:1 16LFCSP | 86% | View |
| ADG5409BCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 2 X 4:1 16LFCSP | 86% | View |
| ADG5409TCPZ-EP | Analog Devices Inc. | IC MUX 2 X 4:1 14 OHM 16LFCSP | 86% | View |
| ADG5409BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 2 X 4:1 16TSSOP | 86% | View |
Submit your RFQ for ADGS1409BCPZ and get a quote within 24 hours.
