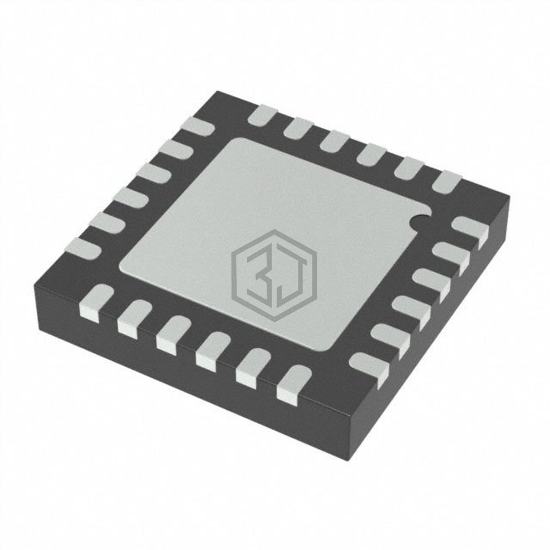

IC SWITCH SPST QUAD 24-LFCSP
ADGS1212BCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST QUAD 24-LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 24-WFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 7,834
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 260Ohm, 625Ohm |
| Channel-to-Channel Matching (ΔRon) | 11Ohm, 27Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 490ns, 225ns |
| -3db Bandwidth | 1GHz |
| Charge Injection | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 1.4pF, 1.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1212BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPST QUAD 24-LFCSP | 100% | View |
| HI4-5049/883 | Harris Corporation | SPST ANALOG SWITCH, 2 CHANNEL | 64% | View |
| ADG201ASRZ-EP-RL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16PLCC | 61% | View |
| ADG201ASRZ-EP | Analog Devices Inc. | IC SWITCH QUAD SPST 16PLCC | 61% | View |
| MAX338MSE/PR3+T | Analog Devices Inc./Maxim Integrated | IC SWITCH 8X1 16SOIC | 52% | View |
| HI4-0547/883 | Harris Corporation | ANALOG DIFFERENTIAL MULTIPLEXER | 52% | View |
Submit your RFQ for ADGS1212BCPZ and get a quote within 24 hours.
