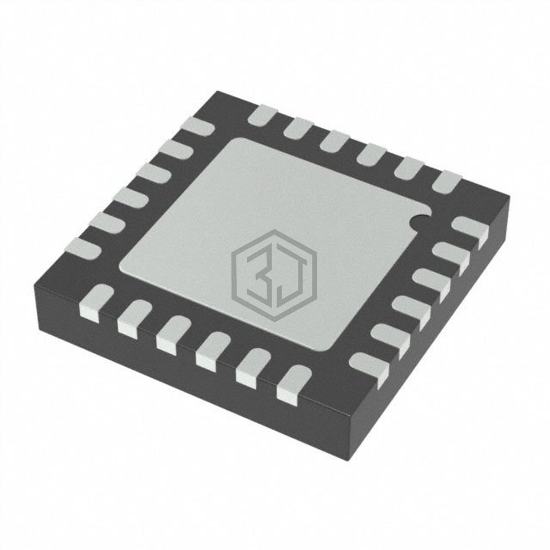

IC SWITCH DUAL 24LFCSP
ADGS1209BCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-WFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 5,158
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 110ns, 135ns |
| -3db Bandwidth | 630MHz |
| Charge Injection | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 1pF, 2pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADGS1209BCPZ-RL7 | Analog Devices Inc. | IC SWITCH DUAL 24LFCSP | 100% | View |
| ADGS1208BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SINGLE 24LFCSP | 90% | View |
| TMUX4052BQBR | Texas Instruments | +/-12-V, 4:1, 2-CHANNEL MULTIPLE | 77% | View |
| TMUX4052PWRQ1 | Texas Instruments | AUTOMOTIVE, 12-V, 4:1 2-CHANNEL | 77% | View |
| TMUX4052PWR | Texas Instruments | IC SWITCH SP4TX2 240OHM 16TSSOP | 77% | View |
| TMUX4052BQBRQ1 | Texas Instruments | AUTOMOTIVE, 12-V, 4:1 TWO-CHANNE | 77% | View |
Submit your RFQ for ADGS1209BCPZ and get a quote within 24 hours.
