4:1 MUX/SP4T

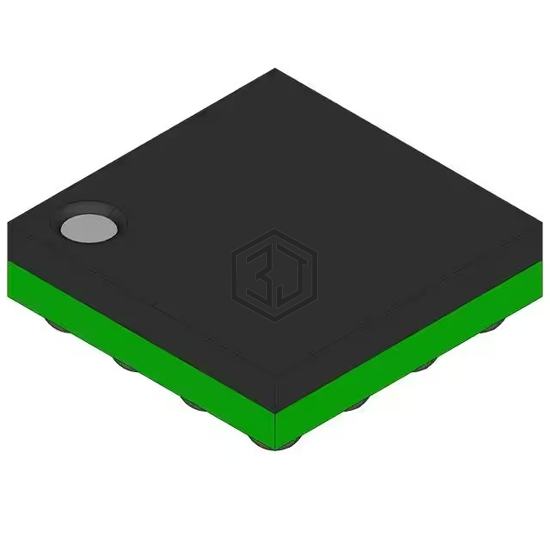

ADG904BCPZ-R-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 4:1 MUX/SP4T. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-WFQFN Exposed Pad, CSP, number of circuits 1.
In Stock: 2,949
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | - |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 2.75V |
| Voltage - Supply, Dual (V±) | 1.65V ~ 2.75V |
| Switch Time (Ton, Toff) (Max) | 10ns, 16ns |
| -3db Bandwidth | 2.5GHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -58dB @ 100MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP-WQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG904BCPZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 20LFCSP | 100% | View |
| ADG904BCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20LFCSP | 100% | View |
| ADG904BCPZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 20LFCSP | 100% | View |
| ADG904BRUZ-R | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 100% | View |
| ADG904SCPZ-EP | Analog Devices Inc. | IC MUX/DEMUX SP4T 20LFCSP | 100% | View |
| ADG904BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 100% | View |
Submit your RFQ for ADG904BCPZ-R-REEL and get a quote within 24 hours.
