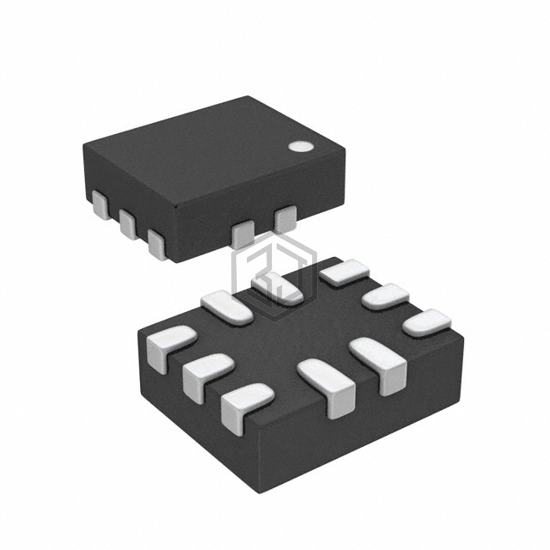

IC SWITCH DUAL SPDT 10LFCSP
ADG854BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 10LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, CSP, number of circuits 2.
In Stock: 1,525
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 850mOhm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 23ns, 8.5ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 19.5pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN, CSP |
| Supplier Device Package | 10-LFCSP-UQ (1.6x1.3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG854BCPZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10LFCSP | 100% | View |
| MC74LVX4052DTR2G-Q | onsemi | LOG CMOS MLTIPLXR | 72% | View |
| NLAS4051QSR | onsemi | IC MUX/DEMUX 8X1 16QSOP | 71% | View |
| NLAST4051DTR2G | onsemi | IC MUX/DEMUX 1X8 16TSSOP | 70% | View |
| NLAST4051DTR2 | onsemi | IC MUX/DEMUX 1X8 16TSSOP | 70% | View |
| NLAS4052DR2 | onsemi | IC MUX/DEMUX DUAL 4X1 16SOIC | 68% | View |
