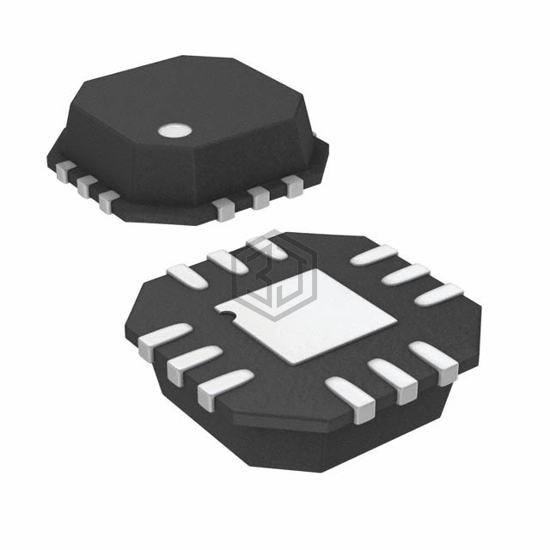

IC SWITCH DUAL SPDT 12LFCSP
ADG836YCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-VFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 1,098
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 650mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 26ns, 7ns |
| -3db Bandwidth | 57MHz |
| Charge Injection | 40pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Crosstalk | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 12-LFCSP-VQ (3x3) |
ADG836YCPZ-REEL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG836YRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| ADG836YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 12LFCSP | 100% | View |
| ADG836YRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| ADG836YRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 100% | View |
| ADG836LYRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 87% | View |
| 74HCT4852D-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 8CH 16SOIC | 56% | View |
Submit your RFQ for ADG836YCPZ-REEL and get a quote within 24 hours.
