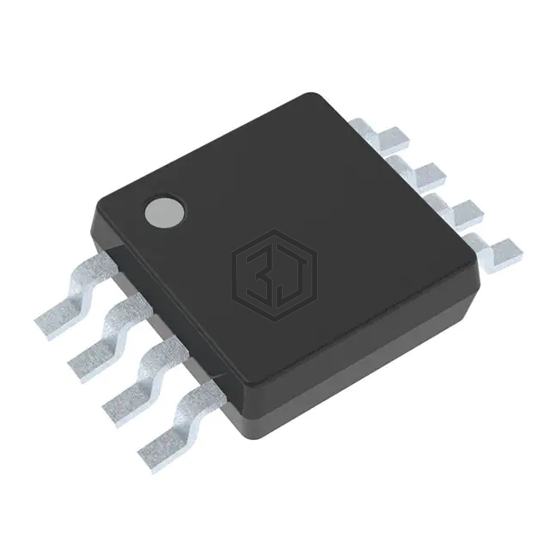

SPST SWITCH
ADG801BRM-R2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. SPST SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width), number of circuits 1.
In Stock: 784
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300mOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 45ns, 15ns |
| -3db Bandwidth | 12MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 180pF, 180pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG802BRMZ | Analog Devices Inc. | IC SWITCH SPST 8MSOP | 100% | View |
| ADG802BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH SPST 8MSOP | 100% | View |
| ADG801BRTZ-500RL7 | Analog Devices Inc. | IC SWITCH SPST SOT23-6 | 100% | View |
| ADG819BRTZ-500RL7 | Analog Devices Inc. | IC SWITCH SPDT SOT23-6 | 83% | View |
| ADG819BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH SPDT 8MSOP | 83% | View |
| ADG819BRTZ-REEL | Analog Devices Inc. | IC SWITCH SPDT SOT23-6 | 83% | View |
Submit your RFQ for ADG801BRM-R2 and get a quote within 24 hours.
