IC MUX/DEMUX DUAL 2X1 10WLCSP

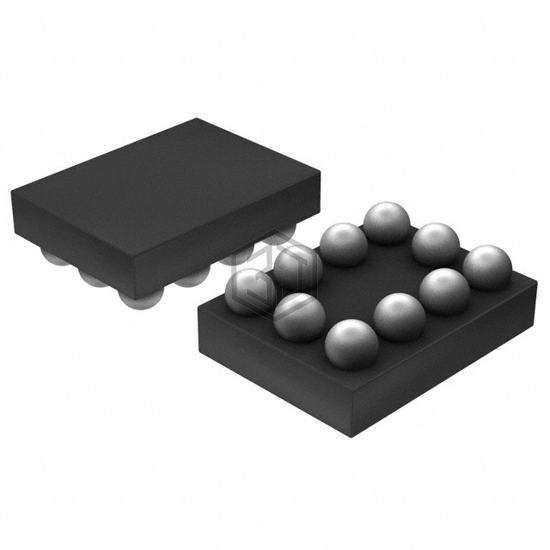

ADG787BCBZ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX DUAL 2X1 10WLCSP. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), package / case 10-UFBGA, WLCSP, number of circuits 2.
In Stock: 3,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 19ns, 5ns |
| -3db Bandwidth | 145MHz |
| Charge Injection | 14pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) |
| Crosstalk | -110dB @ 1MHz |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (2x1.5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG787BRMZ-500RL7 | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10MSOP | 100% | View |
| ADG787BRMZ | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10MSOP | 100% | View |
| ADG787BCBZ-REEL | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10WLCSP | 100% | View |
| ADG787BRMZ-REEL | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10MSOP | 100% | View |
| ADG787BCPZ-500RL7 | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10LFCSP | 100% | View |
| ADG787BCPZ-REEL7 | Analog Devices Inc. | DUAL 2:1 MUX/DEMUX USB SWITCH | 100% | View |
Submit your RFQ for ADG787BCBZ-500RL7 and get a quote within 24 hours.
