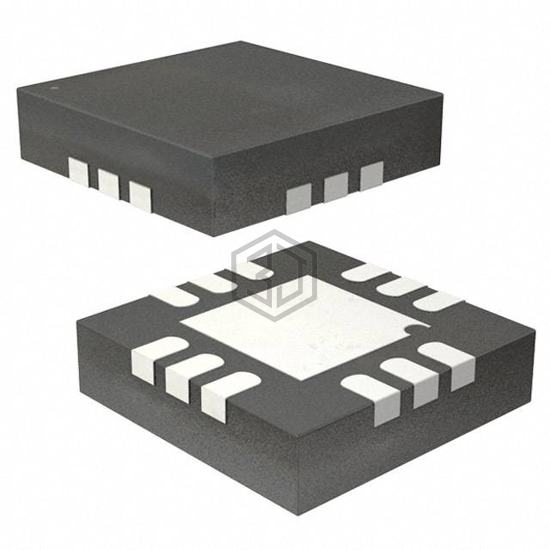

IC MUX/DEMUX DUAL SPDT 12LFCSP
ADG772BCPZ-1REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-WFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 1,885
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 6.7Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 12.5ns, 9.5ns |
| -3db Bandwidth | 630MHz |
| Charge Injection | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2.4pF, 6.9pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 12-LFCSP (3x3) |
