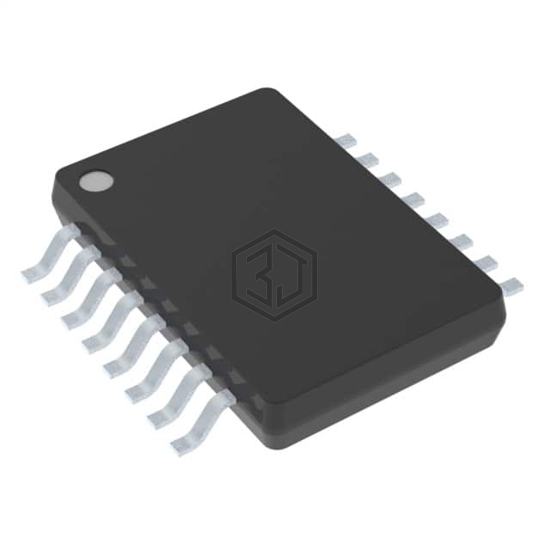

IC SWITCH QUAD SPDT 20TSSOP
ADG734BRUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPDT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-TSSOP (0.173", 4.40mm Width), number of circuits 4.
In Stock: 4,061
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 21ns, 10ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -67dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG734BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 20TSSOP | 100% | View |
| ADG734BRUZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPDT 20TSSOP | 100% | View |
| ADG733BRUZ-REEL | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16TSSOP | 98% | View |
| ADG733BRQZ | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16QSOP | 98% | View |
| ADG788BCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPST 20LFCSP | 93% | View |
| ADG786BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 20LFCSP | 91% | View |
Submit your RFQ for ADG734BRUZ and get a quote within 24 hours.
