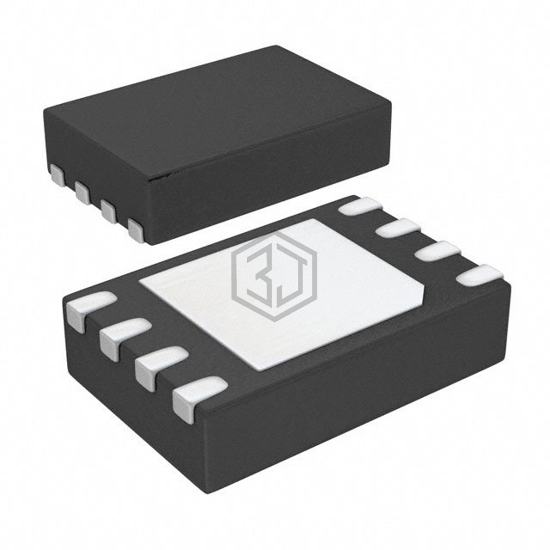

IC SWITCH SPST 8LFCSP
ADG723ACPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-WFDFN Exposed Pad, CSP, number of circuits 2.
In Stock: 1,035
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 6ns (Typ) |
| -3db Bandwidth | 200MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -97dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
ADG723ACPZ-REEL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG722BRMZ | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 87% | View |
| NLAST4599DFT2G | onsemi | IC SWITCH SPDT SC88 | 77% | View |
| NLVAS4599DTT1G | onsemi | IC SWITCH SPDT 6TSOP | 74% | View |
| ADG709CRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16TSSOP | 62% | View |
| MAX4651EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 61% | View |
| ADG708CRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16TSSOP | 56% | View |
Submit your RFQ for ADG723ACPZ-REEL and get a quote within 24 hours.
