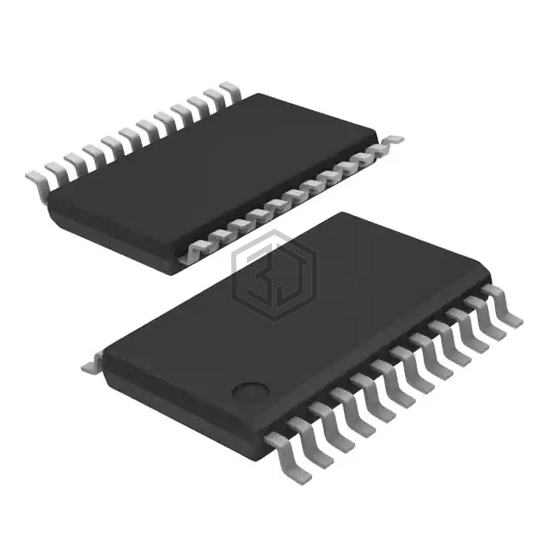

IC SWITCH OCTAL SPST 24TSSOP
ADG715BRU-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH OCTAL SPST 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 24-TSSOP (0.173", 4.40mm Width), number of circuits 8.
In Stock: 1,079
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 20ns, 8ns (Typ) |
| -3db Bandwidth | 155MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
ADG715BRU-REEL7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG739BRUZ-REEL7 | Analog Devices Inc. | IC MUX/DEMUX DUAL 4X1 16TSSOP | 74% | View |
| ADG787BCPZ-REEL | Analog Devices Inc. | IC MUX/DEMUX DUAL 2X1 10LFCSP | 74% | View |
| 74HC2G66DP-Q100H | Nexperia USA Inc. | IC SWITCH DUAL SPST 8TSSOP | 60% | View |
| 74HC2G66DC,125 | Nexperia USA Inc. | IC SWITCH DUAL SPST 8VSSOP | 60% | View |
| ADG738BRUZ | Analog Devices Inc. | IC MUX/DEMUX 8X1 16TSSOP | 59% | View |
| 74HC1G66GV,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSOP | 57% | View |
Submit your RFQ for ADG715BRU-REEL7 and get a quote within 24 hours.
