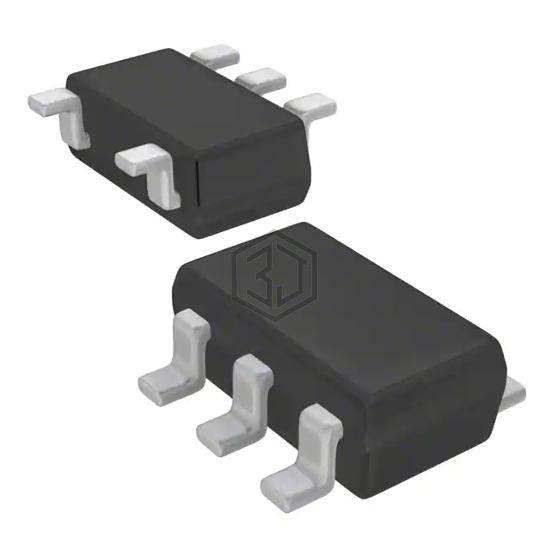

IC SWITCH SPST CMOS SOT23-5
ADG701LBRJ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST CMOS SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case SC-74A, SOT-753, number of circuits 1.
In Stock: 1,750
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 18ns, 12ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
ADG701LBRJ-500RL7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4714ELT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT 6UDFN | 74% | View |
| MAX4639EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 63% | View |
| MAX4639ETE+ | Analog Devices Inc./Maxim Integrated | 3.5OHM, SINGLE 8:1 AND DUAL 4:1, | 63% | View |
| MAX4638ESE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 61% | View |
| MAX4638ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16SOIC | 61% | View |
| TS5A4597DCKR | Texas Instruments | IC SWITCH SPST SC70-5 | 60% | View |
Submit your RFQ for ADG701LBRJ-500RL7 and get a quote within 24 hours.
