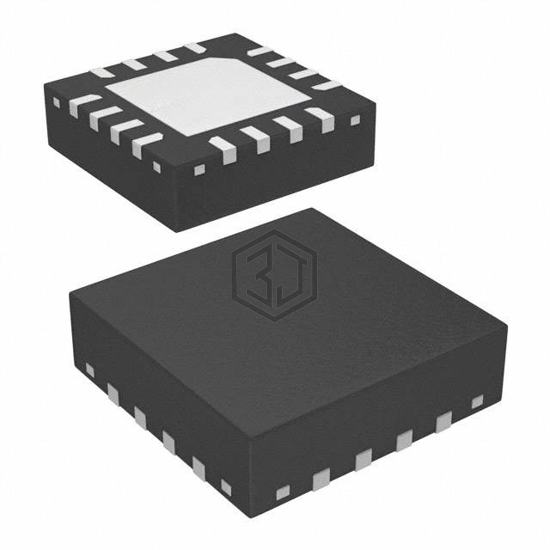

IC MULTIPLEXER 4:1 16LFCSP
ADG659YCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4:1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 494
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 115ns, 45ns |
| -3db Bandwidth | 400MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG659YRQZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16QSOP | 100% | View |
| ADG659YRU | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16TSSOP | 100% | View |
| ADG658YCPZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 16LFCSP | 75% | View |
| ADG658TRUZ-EP-RL7 | Analog Devices Inc. | IC MULTIPLEXER 8:1 16TSSOP | 75% | View |
| ADG658YRQZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16QSOP | 75% | View |
| ADW54003-0RL7 | Analog Devices Inc. | IC MUX 8:1 16TSSOP | 75% | View |
Submit your RFQ for ADG659YCPZ and get a quote within 24 hours.
