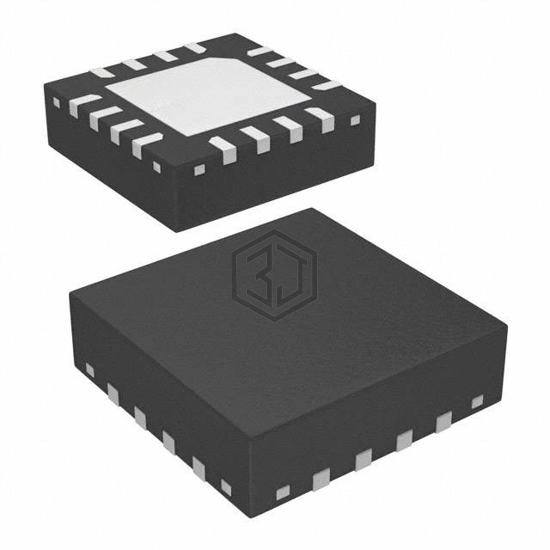

IC SWITCH TRIPLE SPDT 16LFCSP
ADG633YCPZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH TRIPLE SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 3.
In Stock: 2,383
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 75Ohm |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 95ns, 40ns |
| -3db Bandwidth | 580MHz |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG633YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16TSSOP | 100% | View |
| ADG633YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16LFCSP | 100% | View |
| ADG333ABRZ | Analog Devices Inc. | IC SWITCH QUAD SPDT 20SOIC | 81% | View |
| ADG1209YRUZ | Analog Devices Inc. | IC MULTIPLEXER 15V 4:1 16TSSOP | 74% | View |
| ADG1209YRZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16SOIC | 74% | View |
| ADG1208YRZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SOIC | 68% | View |
Submit your RFQ for ADG633YCPZ and get a quote within 24 hours.
