60V OV PROTECTED, HV SPSTX2 SWIT

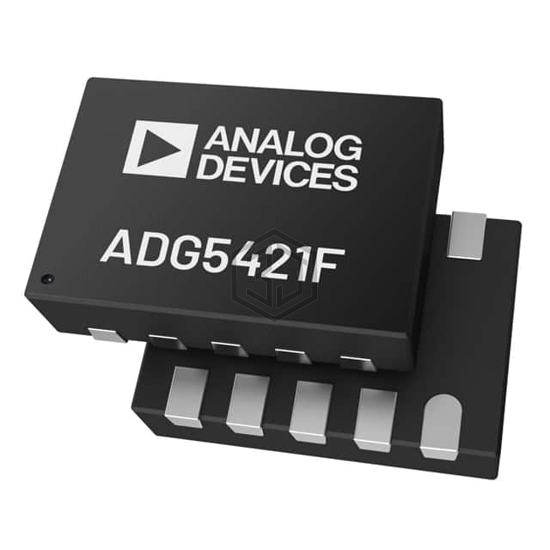

ADG5421FBCPZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 60V OV PROTECTED, HV SPSTX2 SWIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 10-WFDFN, CSP, number of circuits 2.
In Stock: 3,178
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 14Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 15.9µs, 160ns |
| -3db Bandwidth | 630MHz |
| Charge Injection | -150pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN, CSP |
| Supplier Device Package | 10-LFCSP (3x2) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5401FBCPZ-RL7 | Analog Devices Inc. | 60V OV PROTECTED HV SPSTX1 SWITC | 67% | View |
| ADG7421FBCPZ-RL7 | Analog Devices Inc. | 60V OV PROTECTED, 5V SPSTX1 SWIT | 59% | View |
| TMUX4157NDCKR | Texas Instruments | 2- LOW RON, -12-V, 2:1 (SPDT) GE | 50% | View |
