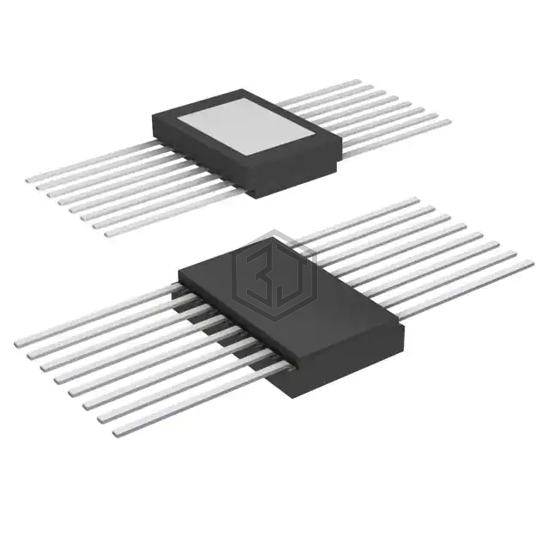

IC MUX/DEMUX 8:1 16FLATPACK
ADG5298HFZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MUX/DEMUX 8:1 16FLATPACK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 210°C (TA), package / case 16-CFlatPack, number of circuits 1.
In Stock: 4,054
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 350Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 245ns, 260ns |
| -3db Bandwidth | 121MHz |
| Charge Injection | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF |
| Current - Leakage (IS(off)) (Max) | 8nA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -55°C ~ 210°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5298HFRZ | Analog Devices Inc. | IC MUX/DEMUX 8:1 16FLATPACK | 100% | View |
Submit your RFQ for ADG5298HFZ and get a quote within 24 hours.
