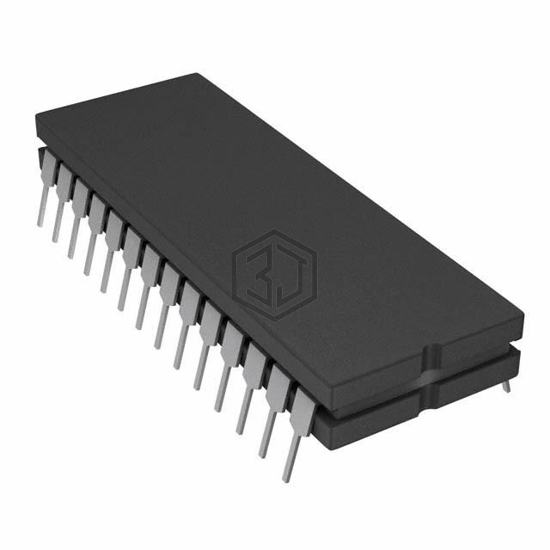

IC MULTIPLEXER 16X1 28CDIP
ADG526ABQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 1.
In Stock: 2,965
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
ADG526ABQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG507AKNZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 8X1 28DIP | 91% | View |
| HI1-0387-2 | Harris Corporation | SPDT CMOS ANALOG SWITCH | 76% | View |
| HI1-0302/883 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 71% | View |
| ADG222BQ | Analog Devices Inc. | QUAD SPST SWITCH | 68% | View |
| DG211BDJ-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16DIP | 63% | View |
| HI3-0549-9 | Harris Corporation | QUAD DIFFERENTIAL MUX | 52% | View |
Submit your RFQ for ADG526ABQ and get a quote within 24 hours.
