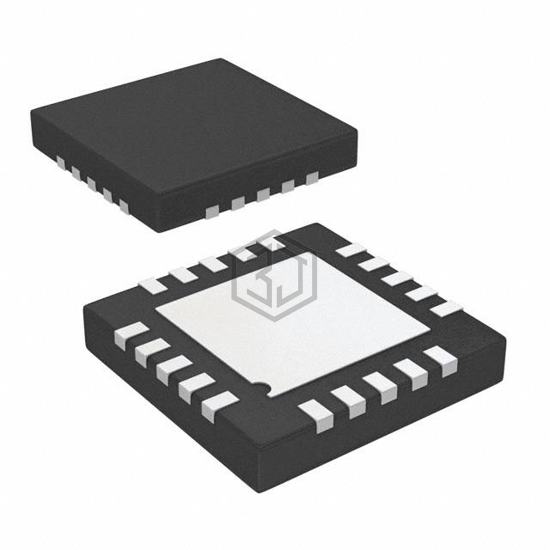

IC SWITCH SPDT TRIPLE 20LFCSP
ADG5243FBCPZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT TRIPLE 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 20-WFQFN Exposed Pad, CSP, number of circuits 3.
In Stock: 249
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 335Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 215ns, 85ns |
| -3db Bandwidth | 350MHz |
| Charge Injection | -1.4pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5243FBRUZ | Analog Devices Inc. | IC MULTIPLEXER 2:1 20TSSOP | 100% | View |
| ADG5243FBRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 2:1 20TSSOP | 100% | View |
| PS509LEX | Diodes Incorporated | ANALOG SWITCH 17V,TSSOP-16,T&R,2 | 90% | View |
| ADG5233BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPDT TRIPLE 16LFCSP | 81% | View |
| ADG5233BRUZ-RL7 | Analog Devices Inc. | IC SW ANLG TRPL SPDT 16TSSOP | 81% | View |
| PS509WEX | Diodes Incorporated | ANALOG SWITCH 17V,SO-16,T&R,2.5K | 79% | View |
Submit your RFQ for ADG5243FBCPZ-RL7 and get a quote within 24 hours.
