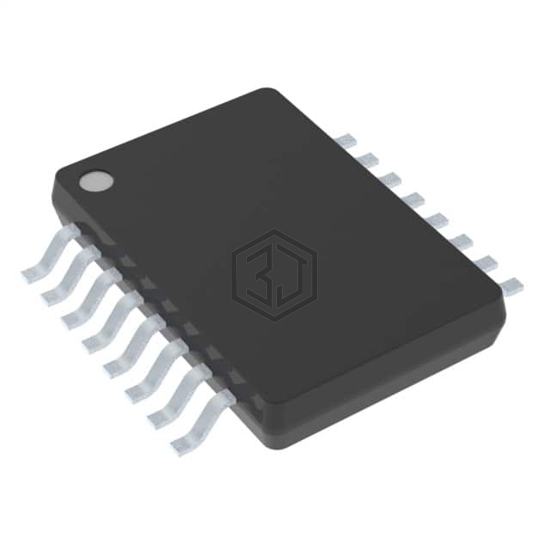

IC SWITCH ANALOG 20-TSSOP
ADG5234BRUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH ANALOG 20-TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 20-TSSOP (0.173", 4.40mm Width), number of circuits 4.
In Stock: 6,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 200ns, 95ns |
| -3db Bandwidth | 370MHz |
| Charge Injection | 0.7pC |
| Channel Capacitance (CS(off), CD(off)) | 4.5pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5234BCPZ-RL7 | Analog Devices Inc. | IC SW ANLG QUAD SPDT 20LFCSP | 100% | View |
| ADG5234BRUZ-RL7 | Analog Devices Inc. | IC SW ANLG QUAD SPDT 20TSSOP | 100% | View |
| ADG5233BCPZ-RL7 | Analog Devices Inc. | IC SWITCH SPDT TRIPLE 16LFCSP | 98% | View |
| ADG5233BRUZ-RL7 | Analog Devices Inc. | IC SW ANLG TRPL SPDT 16TSSOP | 98% | View |
| ADG5233BRUZ | Analog Devices Inc. | IC SWITCH ANALOG 16-TSSOP | 98% | View |
| PS509LEX | Diodes Incorporated | ANALOG SWITCH 17V,TSSOP-16,T&R,2 | 68% | View |
Submit your RFQ for ADG5234BRUZ and get a quote within 24 hours.
