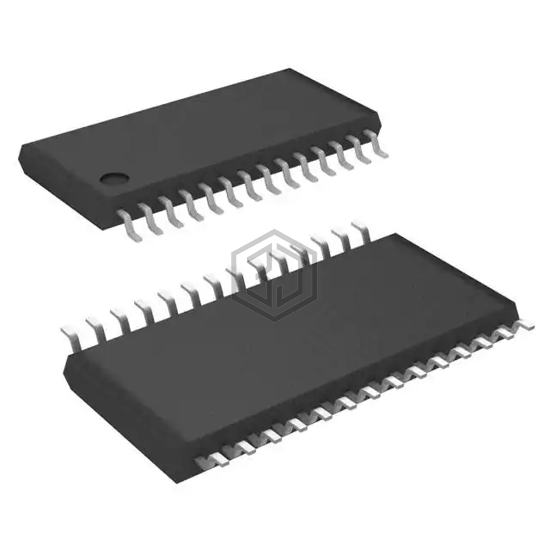

IC MULTIPLEXER 1X16:1 28TSSOP
ADG5206BRUZ-RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 1X16:1 28TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 28-TSSOP (0.173", 4.40mm Width), number of circuits 1.
In Stock: 1,120
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 4Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 230ns, 185ns |
| -3db Bandwidth | 65MHz |
| Charge Injection | 0.45pC |
| Channel Capacitance (CS(off), CD(off)) | 3.3pf, 62pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -76dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG5206BRUZ | Analog Devices Inc. | IC MULTIPLEXER 1 X 16:1 28TSSOP | 100% | View |
| ADG5206BCPZ-RL7 | Analog Devices Inc. | IC MUX 1 X 16:1 32LFCSP | 100% | View |
| ADG438FBRZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SOIC | 72% | View |
| ADG438FBRZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 8X1 16SOIC | 72% | View |
| ADG5207BRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 2X8:1 28TSSOP | 70% | View |
| ADG5207BRUZ | Analog Devices Inc. | IC MULTIPLEXER 2 X 8:1 28TSSOP | 70% | View |
