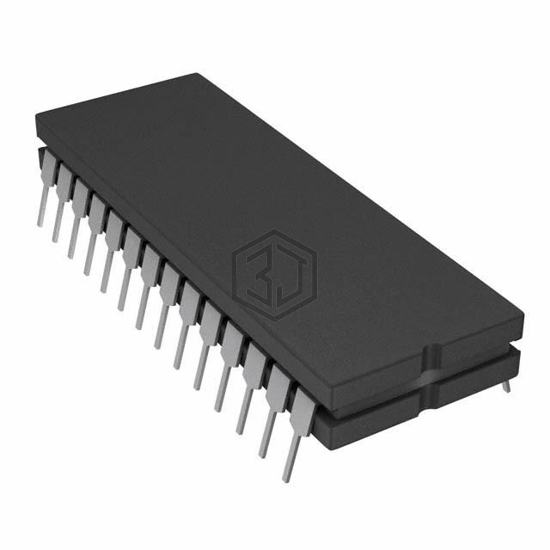

IC MULTIPLEXER DUAL 8X1 28CDIP
ADG507ATQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DUAL 8X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.
In Stock: 4,179
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
ADG507ATQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-89710013X | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CLCC | 91% | View |
| ADG506ATQ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28CDIP | 91% | View |
| DG302AAK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH DPDT 50 OHM 14CDIP | 84% | View |
| HI1-0384-2 | Harris Corporation | DUAL DPST CMOS ANALOG SWITCH | 82% | View |
| DG186AP | Harris Corporation | SPDT DRIVER WITH JFET SWITCH | 80% | View |
| DG186AP/883B | Harris Corporation | SPDT DRIVER WITH JFET SWITCH | 80% | View |
Submit your RFQ for ADG507ATQ and get a quote within 24 hours.
