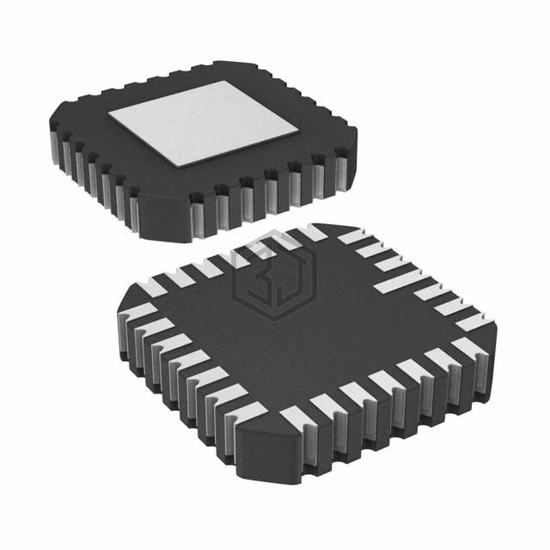

IC MULTIPLEXER DUAL 8X1 28CLCC
ADG507ATE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DUAL 8X1 28CLCC. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 28-LCC, number of circuits 2.
In Stock: 7,785
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-LCC |
| Supplier Device Package | 28-LCC (11.43x11.43) |
ADG507ATE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 5962-89710023A | Analog Devices Inc. | CMOS LATCHED 8 CHANNEL ANALOG MU | 100% | View |
| 5962-89710023X | Analog Devices Inc. | DUAL MARKED (ADG527ATE/883B) | 91% | View |
| 5962-9063501M2A | Analog Devices Inc. | SINGLE-ENDED MUX,8 CHANNEL | 91% | View |
| ADG221TE | Analog Devices Inc. | QUAD SPST SWITCH | 89% | View |
| ADG201ASRZ-EP | Analog Devices Inc. | IC SWITCH QUAD SPST 16PLCC | 82% | View |
| HI4P0524-5 | Harris Corporation | 4-CHANNEL WIDEBAND AND VIDEO MUX | 55% | View |
Submit your RFQ for ADG507ATE and get a quote within 24 hours.
