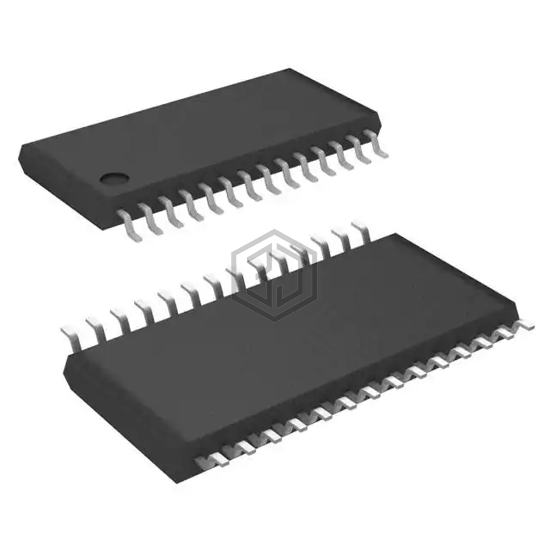

DUAL 8-CHANNEL MUX IC
ADG507AKRUZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. DUAL 8-CHANNEL MUX IC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 28-TSSOP (0.173", 4.40mm Width), number of circuits 1.
In Stock: 4,497
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V, ±10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | 10.8V ~ 16.5V, ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG528AKPZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 20PLCC | 100% | View |
| ADG508AKPZ | Analog Devices Inc. | IC MULTIPLEXER 8X1 20PLCC | 100% | View |
| 5962-89710023A | Analog Devices Inc. | CMOS LATCHED 8 CHANNEL ANALOG MU | 91% | View |
| MAX4691ETE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TQFN | 75% | View |
| DG211BDY-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 63% | View |
| MAX4676EUT+ | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-6 | 63% | View |
Submit your RFQ for ADG507AKRUZ-REEL7 and get a quote within 24 hours.
