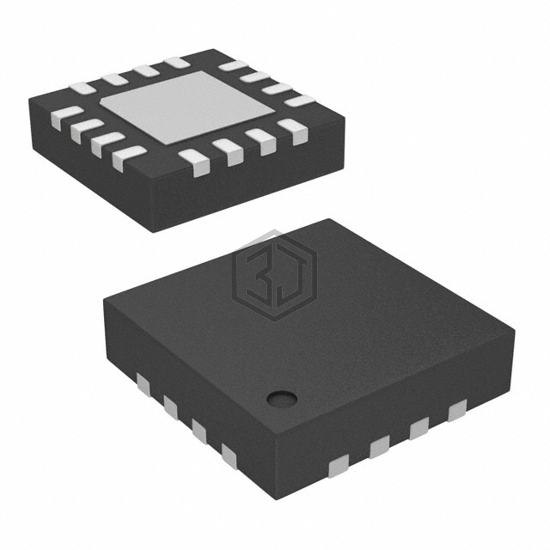

IC SWITCH QUAD SPST 16LFCSP
ADG4612BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPST 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 16-WFQFN Exposed Pad, CSP, number of circuits 4.
In Stock: 6,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 12V |
| Voltage - Supply, Dual (V±) | ±3V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 73ns, 91ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 292pC |
| Channel Capacitance (CS(off), CD(off)) | 11.5pF, 11.5pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -74dB @ 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG4612BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG4613BRUZ | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| ADG4612BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH SPST 5.1 OHM 16TSSOP | 100% | View |
| ADG4613BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16LFCSP | 100% | View |
| ADG4613BRUZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPST 16TSSOP | 100% | View |
| RS2252XTSS16 | Runic Technology | IC MUX/DEMUX DUAL 4X1 16TSSOP | 68% | View |
Submit your RFQ for ADG4612BCPZ-REEL7 and get a quote within 24 hours.
