DIFFERENTIAL MUX,4 CHANNEL

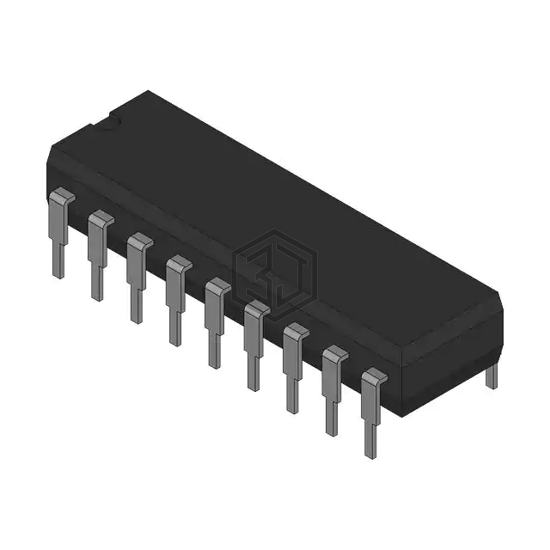

ADG429TQ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. DIFFERENTIAL MUX,4 CHANNEL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 18-CDIP (0.300", 7.62mm), number of circuits 2.
In Stock: 325
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V, ±15V |
| Voltage - Supply, Dual (V±) | 12V, ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG401AK/883 | Harris Corporation | MONOLITHIC CMOS ANALOG SWITCH | 88% | View |
| DG401AK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST 30 OHM 16CDIP | 88% | View |
| DG405AK/883B | Analog Devices Inc./Maxim Integrated | IC SWITCH 2 X DPST 30 OHM 16DIP | 88% | View |
| MAX303MJE | Analog Devices Inc./Maxim Integrated | PRECISION, DUAL, HIGH-SPEED ANAL | 88% | View |
| JM38510/11105BCA | Harris Corporation | SPDT DRIVER WITH JFET SWITCH | 75% | View |
| 5962-9204202MEA | Analog Devices Inc./Maxim Integrated | IC SWITCH SP4T DUAL 16CDIP | 73% | View |
Submit your RFQ for ADG429TQ and get a quote within 24 hours.
