4-CH, DIFFERENTIAL MULTIPLEXER

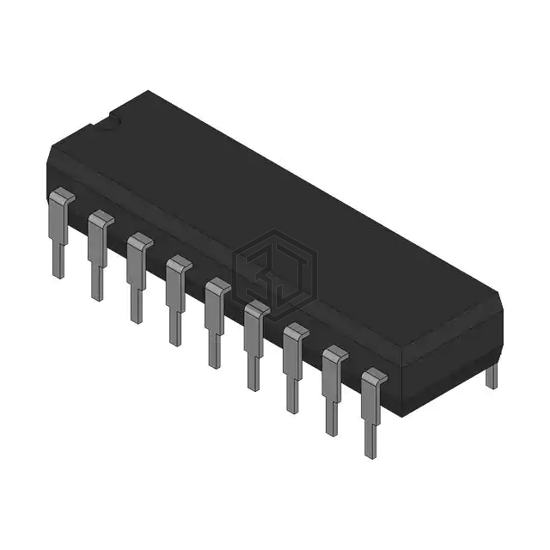

ADG429BN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. 4-CH, DIFFERENTIAL MULTIPLEXER. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 18-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 2,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm |
| Voltage - Supply, Single (V+) | 12V, ±15V |
| Voltage - Supply, Dual (V±) | 12V, ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| -3db Bandwidth | - |
| Charge Injection | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG405AK | Vishay Siliconix | IC SWITCH DUAL DPST 16CDIP | 88% | View |
| DG181AA | Vishay Siliconix | IC SWITCH DUAL SPST TO100-10 | 86% | View |
| DG181AP/883 | Vishay Siliconix | IC SWITCH DUAL SPST 14-DIP | 86% | View |
| 9204202EA | Vishay Siliconix | IC MUX DUAL 4:1 100 OHM 16CERDIP | 80% | View |
| DG187AP/883 | Vishay Siliconix | IC SWITCH DUAL SPDT 14-DIP | 75% | View |
| DG408AK/883B | Analog Devices Inc./Maxim Integrated | IC MUX 8:1 100 OHM 16DIP | 64% | View |
Submit your RFQ for ADG429BN and get a quote within 24 hours.
