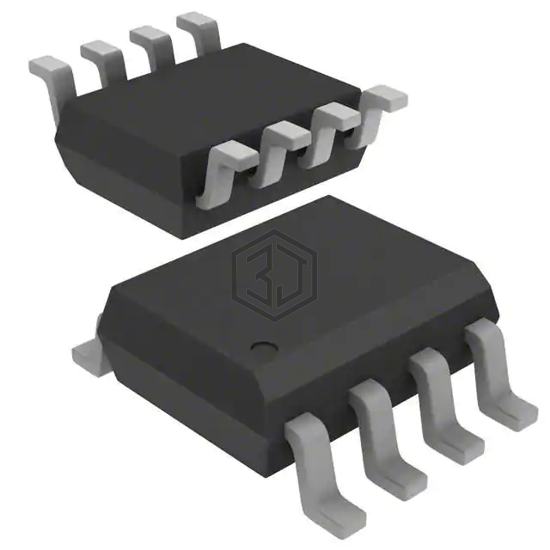

IC SWITCH SPST 8SOIC
ADG417BR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.154", 3.90mm Width), number of circuits 1.
In Stock: 4,903
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 100ns |
| -3db Bandwidth | - |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
ADG417BR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG417BRZ | Analog Devices Inc. | IC SWITCH SPST 8SOIC | 100% | View |
| ADG426BRSZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28SSOP | 89% | View |
| ADG406BPZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28PLCC | 89% | View |
| ADG426BRSZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 16X1 28SSOP | 89% | View |
| ADG407BPZ | Analog Devices Inc. | IC MULTIPLEXER DUAL 8X1 28PLCC | 81% | View |
| MAX4590EAE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 16SSOP | 51% | View |
Submit your RFQ for ADG417BR and get a quote within 24 hours.
