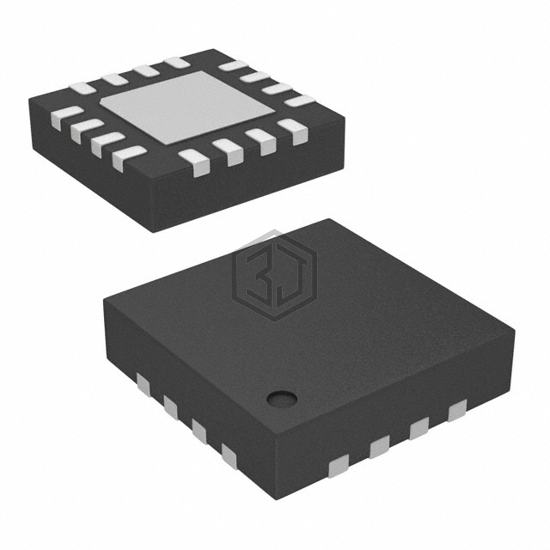

IC MULTIPLEXER DL 4X1 16LFCSP
ADG1609BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER DL 4X1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-WFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 9,565
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 120mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 94ns, 93ns |
| -3db Bandwidth | 78MHz |
| Charge Injection | 29pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 59pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -64dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
