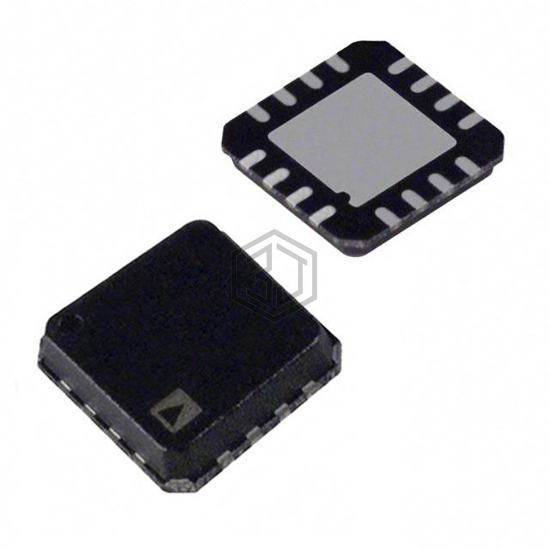

IC MULTIPLEXER 4X1 16LFCSP
ADG1604BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 4X1 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 1.
In Stock: 1,261
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 3.3V ~ 16V |
| Voltage - Supply, Dual (V±) | ±3.3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 95ns, 173ns |
| -3db Bandwidth | 19MHz |
| Charge Injection | 125pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF, 270pF |
| Current - Leakage (IS(off)) (Max) | 200pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1604BRUZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| ADG1604BRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| ADG1604BCPZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 16LFCSP | 100% | View |
| ADG1604BRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 14TSSOP | 100% | View |
| ADG1636BRUZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 16TSSOP | 81% | View |
| ADG1636BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 16LFCSP | 81% | View |
Submit your RFQ for ADG1604BCPZ-REEL7 and get a quote within 24 hours.
