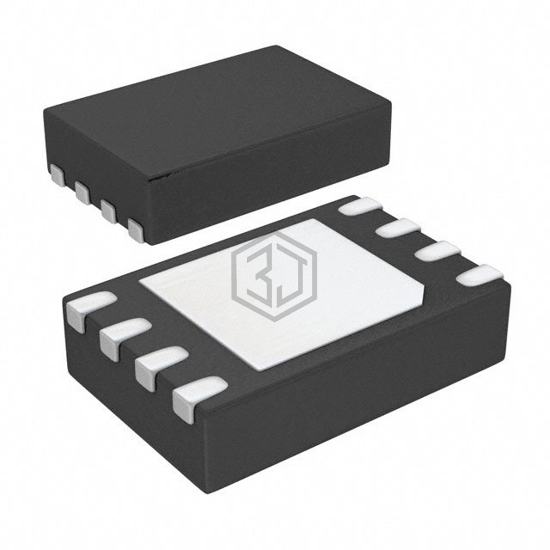

IC SWITCH SPST 8LFCSP
ADG1517BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPST 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-WFDFN Exposed Pad, CSP, number of circuits 1.
In Stock: 710
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.85Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 175ns, 155ns |
| -3db Bandwidth | 65MHz |
| Charge Injection | 70pC |
| Channel Capacitance (CS(off), CD(off)) | 68pF, 68pF |
| Current - Leakage (IS(off)) (Max) | 10nA (Typ) |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (2x3) |
ADG1517BCPZ-REEL7 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX7219MDGKR | Texas Instruments | 44-V, LOW RON, 2:1, 1 CH LATCH-U | 70% | View |
| TMUX7219DGKR | Texas Instruments | 44-V, LATCH-UP IMMUNE, 2:1 (SPDT | 69% | View |
| ADG5208BCPZ-RL7 | Analog Devices Inc. | IC MUX 8CH LATCHUP PROOF 16LFCSP | 66% | View |
| ADG5208BRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 1X8:1 16TSSOP | 66% | View |
| ADG5208FBRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 1X8:1 16TSSOP | 66% | View |
| ADG5208FBRUZ | Analog Devices Inc. | IC MULTIPLEXER 4CH 16-TSSOP | 66% | View |
Submit your RFQ for ADG1517BCPZ-REEL7 and get a quote within 24 hours.
