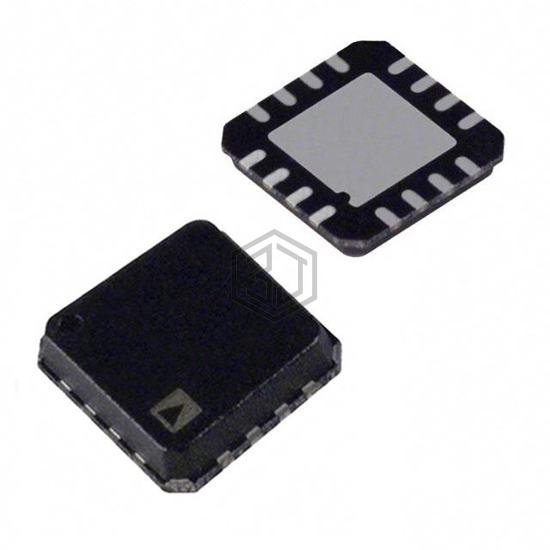

IC SWITCH SPDT DUAL 16LFCSP
ADG1436YCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT DUAL 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 6,936
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 1.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 120ns, 130ns |
| -3db Bandwidth | 110MHz |
| Charge Injection | -20pC |
| Channel Capacitance (CS(off), CD(off)) | 23pF, 50pF |
| Current - Leakage (IS(off)) (Max) | 550pA |
| Crosstalk | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1409YRUZ-REEL | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16TSSOP | 86% | View |
| ADG1409YRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER DUAL 4X1 16TSSOP | 86% | View |
| DG452EQ-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 75% | View |
| DG455EY-T1-E3 | Vishay Siliconix | IC SWITCH QUAD SPST 16SOIC | 75% | View |
| ADG1404YCPZ-REEL | Analog Devices Inc. | IC MULTIPLEXER 4X1 16LFCSP | 73% | View |
| ADG1404YCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 16LFCSP | 73% | View |
Submit your RFQ for ADG1436YCPZ-REEL and get a quote within 24 hours.
