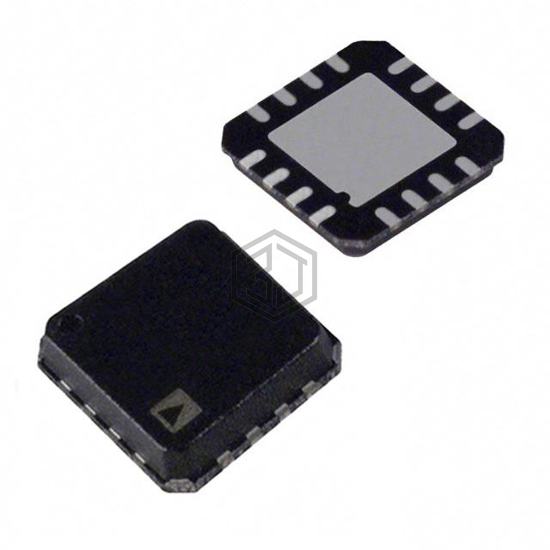

IC SWITCH TRIPLE SPDT 16LFCSP
ADG1433YCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH TRIPLE SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-VQFN Exposed Pad, CSP, number of circuits 3.
In Stock: 8,829
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 |
| On-State Resistance (Max) | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 170ns, 75ns |
| -3db Bandwidth | 200MHz |
| Charge Injection | -50pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 300pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1433YRUZ | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16TSSOP | 100% | View |
| ADG1433YRUZ-REEL7 | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16TSSOP | 100% | View |
| ADG1434YRUZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPDT 20TSSOP | 98% | View |
| ADG1434YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 20LFCSP | 98% | View |
| ADG1434YRUZ | Analog Devices Inc. | IC SWITCH QUAD SPDT 20TSSOP | 98% | View |
| TMUX7219DGKR | Texas Instruments | 44-V, LATCH-UP IMMUNE, 2:1 (SPDT | 64% | View |
Submit your RFQ for ADG1433YCPZ-REEL and get a quote within 24 hours.
