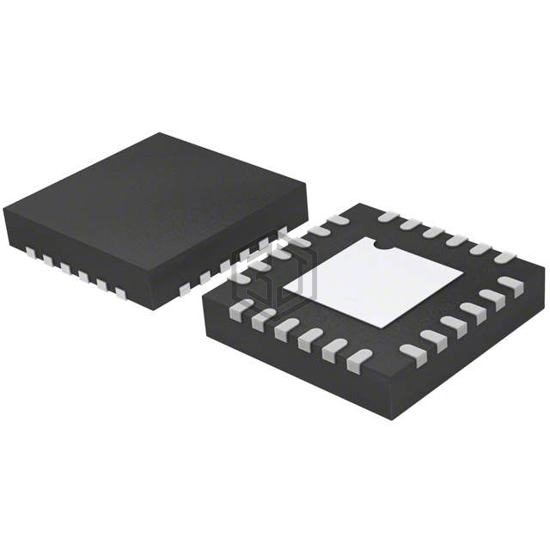

IC SW SPST 9.5OHM RON 24LFCSP
ADG1414BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SW SPST 9.5OHM RON 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 24-WFQFN Exposed Pad, CSP, number of circuits 8.
In Stock: 6,655
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 11.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 550mOhm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 93ns, 35ns |
| -3db Bandwidth | 256MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF |
| Current - Leakage (IS(off)) (Max) | 150pA |
| Crosstalk | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1414BRUZ | Analog Devices Inc. | IC SW SPST 9.5OHM RON 24TSSOP | 100% | View |
| ADG1414BRUZ-REEL7 | Analog Devices Inc. | IC SW SPST 9.5OHM RON 24TSSOP | 100% | View |
| ADG1206YRUZ | Analog Devices Inc. | IC MULTIPLEXER 16X1 28TSSOP | 63% | View |
| ADG1206YCPZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 16X1 32LFCSP | 63% | View |
| ADG1206YRUZ-REEL7 | Analog Devices Inc. | IC MULTIPLEXER 16X1 28TSSOP | 63% | View |
| V62/12617-01XB | Analog Devices Inc. | IC SWITCH SPST QUAD 16TSSOP | 56% | View |
Submit your RFQ for ADG1414BCPZ-REEL7 and get a quote within 24 hours.
