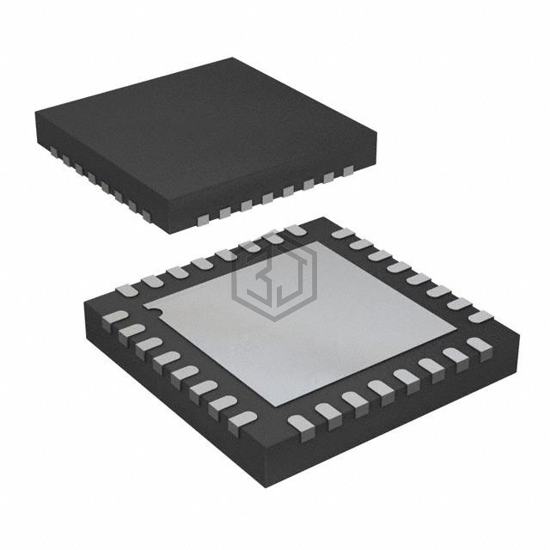

IC MULTIPLEXER 16X1 32LFCSP
ADG1406BCPZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC MULTIPLEXER 16X1 32LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 32-WFQFN Exposed Pad, CSP, number of circuits 1.
In Stock: 9,054
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 11.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 550mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 110ns, 120ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 90pf |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
