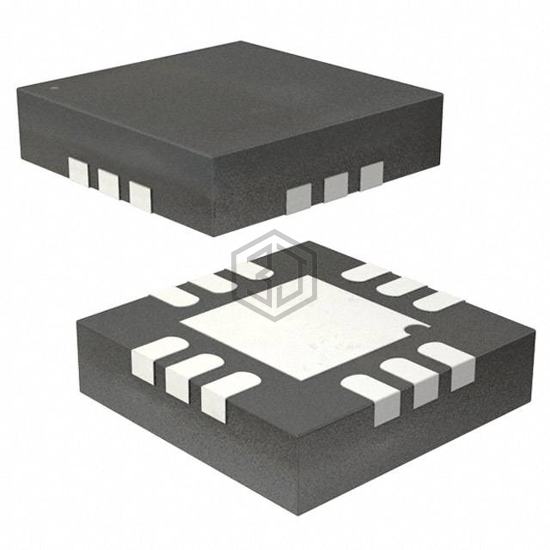

IC SWITCH DUAL SPDT 12LFCSP
ADG1236YCPZ-500RL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH DUAL SPDT 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 12-WFQFN Exposed Pad, CSP, number of circuits 2.
In Stock: 5,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 90ns |
| -3db Bandwidth | 1GHz |
| Charge Injection | -1pC |
| Channel Capacitance (CS(off), CD(off)) | 1.6pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 12-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG1233YRUZ | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16TSSOP | 85% | View |
| ADG1233YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH TRIPLE SPDT 16LFCSP | 85% | View |
| ADG1234YCPZ-REEL | Analog Devices Inc. | IC SWITCH QUAD SPDT 20LFCSP | 83% | View |
| ADG5209SRUZ-EP-RL7 | Analog Devices Inc. | IC MULTIPLEXER 1X4:1 16TSSOP | 59% | View |
| ADG5209BRUZ | Analog Devices Inc. | IC MULTIPLEXER 5CH 16-TSSOP | 59% | View |
| ADG5209BRUZ-RL7 | Analog Devices Inc. | IC MULTIPLEXER 1X4:1 16TSSOP | 59% | View |
Submit your RFQ for ADG1236YCPZ-500RL7 and get a quote within 24 hours.
