IC LED DRVR CTRLR PWM 24LFCSP

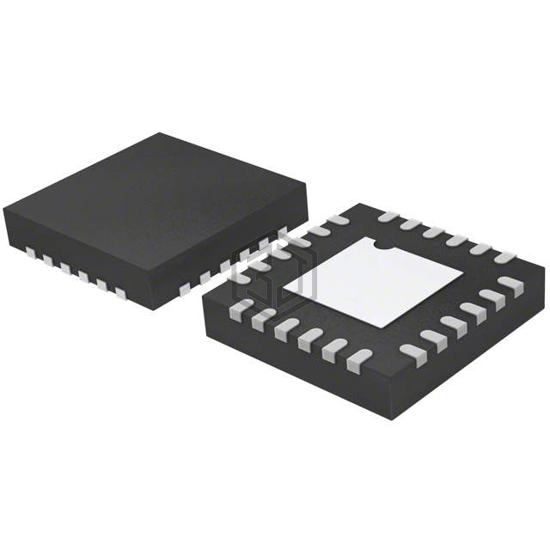

ADD5211ACPZ-R7 is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRVR CTRLR PWM 24LFCSP. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), package / case 24-WFQFN Exposed Pad, CSP, current - output / channel 200mA.
In Stock: 2,297
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DC DC Controller |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | - |
| Current - Output / Channel | 200mA |
| Frequency | 200kHz ~ 1.2MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX16814CAUP+T | Analog Devices Inc./Maxim Integrated | IC LED DRVR CTRLR PWM 20TSSOP | 94% | View |
| MAX16814ATP/V+T | Analog Devices Inc./Maxim Integrated | IC LED DRV CTRL PWM 150MA 20TQFN | 94% | View |
| MAX16814ATP/V+C81 | Analog Devices Inc./Maxim Integrated | IC LED DRV CTRL PWM 150MA 20TQFN | 94% | View |
| LT3763IFE#TRPBF | Analog Devices Inc. | IC LED DRIVER CTRLR PWM 28TSSOP | 77% | View |
| LT3964RUHE-1#TRPBF | Analog Devices Inc. | IC LED DRVR CTRLR PWM 1.6A 36QFN | 70% | View |
| TLD55421QVXUMA1 | Infineon Technologies | IC LED DRVR CTRL PWM 90MA 48VQFN | 69% | View |
Submit your RFQ for ADD5211ACPZ-R7 and get a quote within 24 hours.
