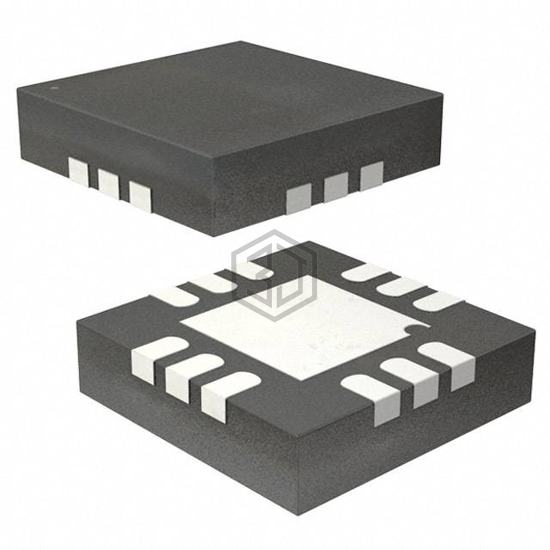

IC COMP LVDS 1CHAN 12-LFCSP
ADCMP605BCPZ-R2 is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMP LVDS 1CHAN 12-LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 12-WFQFN Exposed Pad, CSP, output type Complementary, LVDS, Rail-to-Rail.
In Stock: 2,806
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | with Latch |
| Number of Elements | 1 |
| Output Type | Complementary, LVDS, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.5V ~ 5.5V |
| Voltage - Input Offset (Max) | 5mV @ 3V |
| Current - Input Bias (Max) | 5µA @ 3V |
| Current - Output (Typ) | 50mA |
| Current - Quiescent (Max) | 3mA |
| CMRR, PSRR (Typ) | 50dB CMRR, 50dB PSRR |
| Propagation Delay (Max) | 3ns |
| Hysteresis | 100µV |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 12-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Supplier Device Package | 12-LFCSP (3x3) |
ADCMP605BCPZ-R2 is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADCMP605BCPZ-R7 | Analog Devices Inc. | IC COMP LVDS 1CHAN 12-LFCSP | 100% | View |
| ADCMP605BCPZ-WP | Analog Devices Inc. | IC COMP LVDS 1CHAN 12-LFCSP | 100% | View |
| ADCMP607BCPZ-R7 | Analog Devices Inc. | IC COMP TTL/CMOS 1CHAN 12-LFCSP | 91% | View |
| ADCMP601BKSZ-REEL7 | Analog Devices Inc. | IC COMP TTL/CMOS 1CHAN SC70-6 | 91% | View |
| ADCMP601BKSZ-R2 | Analog Devices Inc. | IC COMP TTL/CMOS 1CHAN SC70-6 | 91% | View |
| ADCMP602BRMZ | Analog Devices Inc. | IC COMP TTL/CMOS 1CHAN 8-MSOP | 90% | View |
