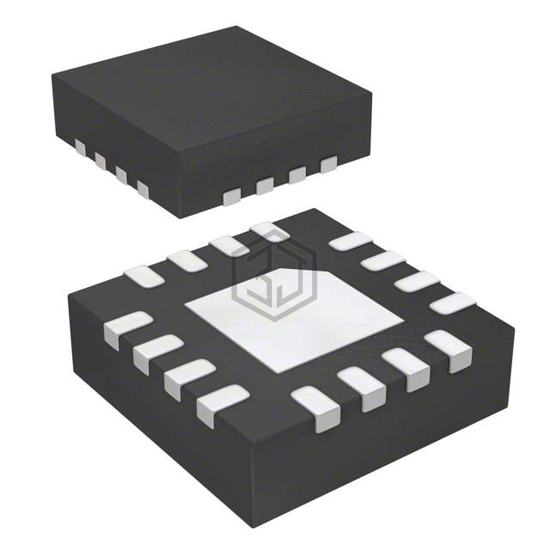

IC COMPARATOR ECL DUAL 16LFCSP
ADCMP563BCPZ-RL7 is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMPARATOR ECL DUAL 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-WFQFN Exposed Pad, CSP, output type Complementary, Differential, ECL, Open-Emitter.
In Stock: 11,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | with Latch |
| Number of Elements | 2 |
| Output Type | Complementary, Differential, ECL, Open-Emitter |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Voltage - Input Offset (Max) | 10mV @ 5V |
| Current - Input Bias (Max) | 10µA @ 5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 5mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | - |
| Hysteresis | ±1mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADCMP563BCP-R2 | Analog Devices Inc. | COMPARATOR, 2 FUNC | 100% | View |
| ADCMP563BCPZ-WP | Analog Devices Inc. | COMPARATOR, 2 FUNC, 10000UV OFFS | 100% | View |
| ADCMP563BCP-RL7 | Analog Devices Inc. | COMPARATOR, 2 FUNC | 100% | View |
| ADCMP552BRQZ | Analog Devices Inc. | IC COMPARATOR PECL/LVPECL 20QSOP | 61% | View |
| MAX902ESD+ | Analog Devices Inc./Maxim Integrated | IC COMPARATOR VOLT 14-SOIC | 58% | View |
| MAX902ESD+T | Analog Devices Inc./Maxim Integrated | IC COMPARATOR VOLT 14-SOIC | 58% | View |
Submit your RFQ for ADCMP563BCPZ-RL7 and get a quote within 24 hours.
