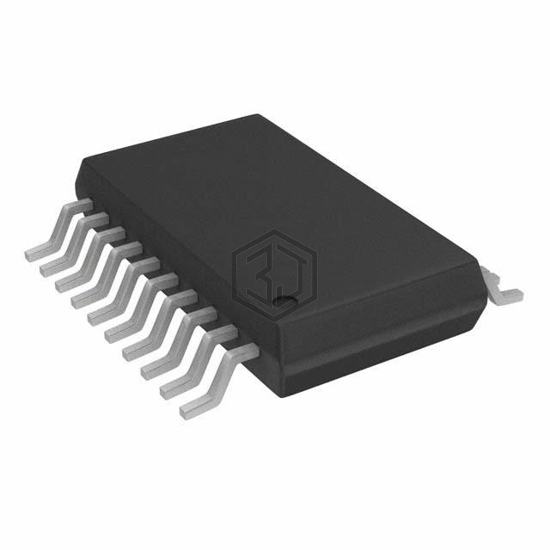

IC COMPARATOR PECL DUAL 20QSOP
ADCMP562BRQ is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMPARATOR PECL DUAL 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 20-SSOP (0.154", 3.90mm Width), output type Complementary, Differential, Open-Emitter, PECL.
In Stock: 18,795
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | with Latch |
| Number of Elements | 2 |
| Output Type | Complementary, Differential, Open-Emitter, PECL |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Voltage - Input Offset (Max) | 2mV @ -5.2V,5V |
| Current - Input Bias (Max) | 3µA @ -5.2V,5V |
| Current - Output (Typ) | 30mA |
| Current - Quiescent (Max) | 5mA, 28mA, 13mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 0.83ns |
| Hysteresis | ±1mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QSOP |
ADCMP562BRQ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADCMP562BRQZ | Analog Devices Inc. | IC COMPARATOR PECL DUAL 20-QSOP | 100% | View |
| ADCMP561BRQZ | Analog Devices Inc. | IC COMPARATOR PECL DUAL 16QSOP | 100% | View |
| ADCMP564BRQZ | Analog Devices Inc. | IC COMPARATOR ECL DUAL HS 20QSOP | 100% | View |
| ADCMP563BRQZ | Analog Devices Inc. | IC COMPARATOR ECL DUAL 16QSOP | 100% | View |
| MAX912ESE+ | Analog Devices Inc./Maxim Integrated | IC COMPARATOR LP 16-SOIC | 56% | View |
| MAX913EUA+T | Analog Devices Inc./Maxim Integrated | IC COMPARATOR LP 8-UMAX | 51% | View |
Submit your RFQ for ADCMP562BRQ and get a quote within 24 hours.
