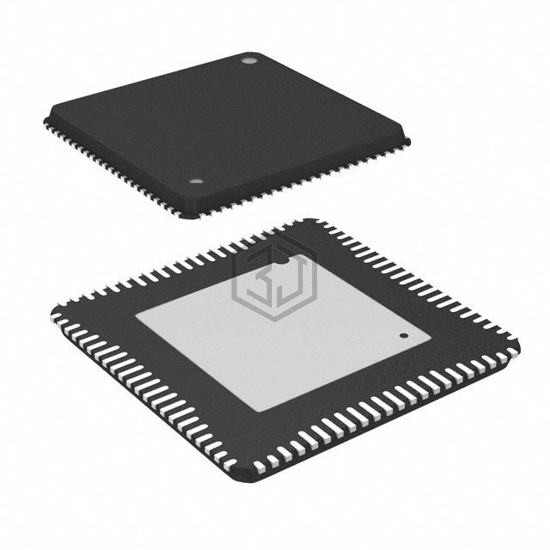

IC DAC 16BIT A-OUT 88LFCSP
AD9136BCPAZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 16BIT A-OUT 88LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 1.14V ~ 1.26V, package / case 88-VFQFN Exposed Pad, CSP.
In Stock: 7,412
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 2 |
| Settling Time | 20ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.14V ~ 1.26V |
| INL/DNL (LSB) | ±2, ±1 |
| Architecture | Current Source |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 88-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 88-LFCSP-VQ (12x11.75) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD9136BCPZRL | Analog Devices Inc. | IC DAC 16BIT A-OUT 88LFCSP | 100% | View |
| AD9135BCPAZ | Analog Devices Inc. | IC DAC 11BIT A-OUT 88LFCSP | 96% | View |
| AD9788BSVZRL | Analog Devices Inc. | IC DAC 16BIT A-OUT 100TQFP | 96% | View |
| AD9135BCPZ | Analog Devices Inc. | IC DAC 11BIT A-OUT 88LFCSP | 96% | View |
| AD9788BSVZ | Analog Devices Inc. | IC DAC 16BIT A-OUT 100TQFP | 96% | View |
| AD9787BSVZ | Analog Devices Inc. | IC DAC 14BIT A-OUT 100TQFP | 95% | View |
Submit your RFQ for AD9136BCPAZ and get a quote within 24 hours.
