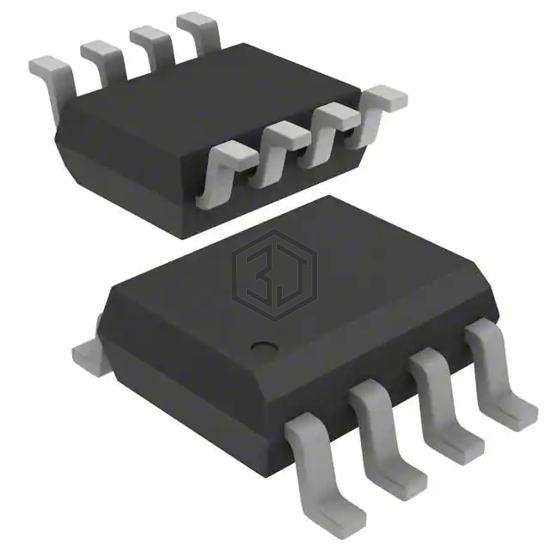

IC COMPARATOR SNGL 7NS 8-SOIC
AD8561AR is a Linear - Comparators manufactured by Analog Devices Inc.. IC COMPARATOR SNGL 7NS 8-SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width), output type CMOS, Complementary, TTL.
In Stock: 6,579
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | CMOS, Complementary, TTL |
| Voltage - Supply, Single/Dual (±) | 3V ~ 10V, ±1.5V ~ 5V |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Current - Input Bias (Max) | 6µA @ 5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 6mA, 3.3mA, 5.5mA |
| CMRR, PSRR (Typ) | 85dB CMRR, 65dB PSRR |
| Propagation Delay (Max) | 9.8ns |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
AD8561AR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD8561ARUZ | Analog Devices Inc. | IC COMP 7NS ULTRA FAST 8-TSSOP | 100% | View |
| AD8561ARUZ-REEL | Analog Devices Inc. | IC COMP 7NS ULTRA FAST 8TSSOP | 100% | View |
| AD8561ARZ-REEL | Analog Devices Inc. | IC COMP 7NS ULTRA-FAST 8-SOIC | 100% | View |
| LT1720IDD#TRPBF | Analog Devices Inc. | IC COMPARATOR DUAL HS 3/5V 8-DFN | 71% | View |
| LT1720IS8 | Analog Devices Inc. | IC COMP R-RINOUT DUAL 8-SOIC | 71% | View |
| LT1720IS8#TR | Analog Devices Inc. | IC COMP DUAL R-R 4MA 4.5NS 8SOIC | 71% | View |
Submit your RFQ for AD8561AR and get a quote within 24 hours.
