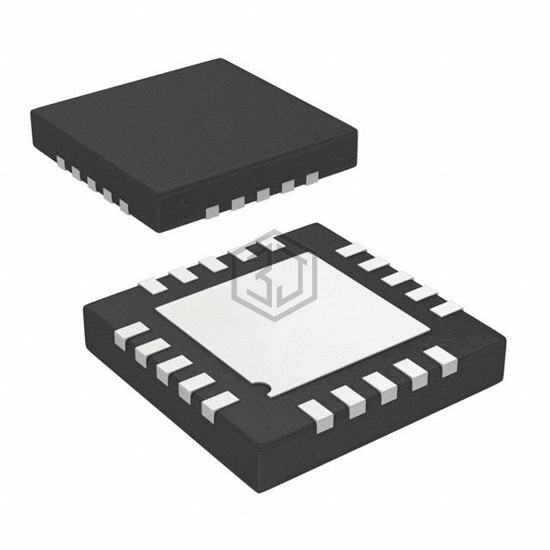

IC ADC 14BIT SAR 20LFCSP
AD7949SCPZ-EP-R2 is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT SAR 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 20-WFQFN Exposed Pad, CSP.
In Stock: 1,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 256k |
| Number of Inputs | 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digital | 2.3V ~ 5.5V |
| Features | Temperature Sensor |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7949SCPZ-EP-RL7 | Analog Devices Inc. | IC ADC 14BIT SAR 20LFCSP | 100% | View |
| AD7327TRUZ-EP | Analog Devices Inc. | IC ADC 12BIT 8CH 20TSSOP | 95% | View |
| AD7291TCPZ-EP | Analog Devices Inc. | IC ADC 12BIT SAR 20LFCSP | 93% | View |
| AD7291TCPZ-EP-RL7 | Analog Devices Inc. | IC ADC 12BIT SAR 20LFCSP | 93% | View |
| TLV2548MPWREP | Texas Instruments | IC ADC 12BIT SAR 20TSSOP | 91% | View |
| TLV2548QDWR | Texas Instruments | IC ADC 12BIT SAR 20SOIC | 91% | View |
Submit your RFQ for AD7949SCPZ-EP-R2 and get a quote within 24 hours.
