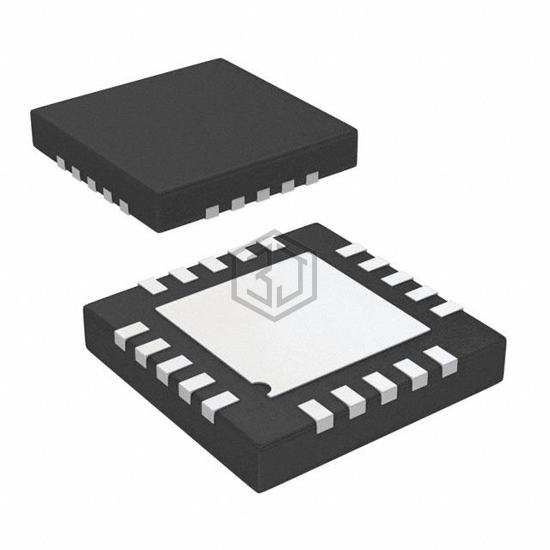

IC ADC 14BIT SAR 20LFCSP
AD7949BCPZ is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc.. IC ADC 14BIT SAR 20LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 2.3V ~ 5.5V, package / case 20-WFQFN Exposed Pad, CSP.
In Stock: 6,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 8 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digital | 2.3V ~ 5.5V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LTC1867LIGN#WPBF | Analog Devices Inc. | IC ADC 16BIT SAR 16SSOP | 94% | View |
| ADS8638SRGER | Texas Instruments | IC ADC 12BIT SAR 24VQFN | 92% | View |
| AD7829BRWZ-1 | Analog Devices Inc. | IC ADC 8BIT PIPELINED 28SOIC | 89% | View |
| AD7829BRUZ-1 | Analog Devices Inc. | IC ADC 8BIT PIPELINED 28TSSOP | 89% | View |
| ADS8528SRGCT | Texas Instruments | IC ADC 12BIT SAR 64VQFN | 86% | View |
| ADS7852Y/250 | Texas Instruments | IC ADC 12BIT SAR 32TQFP | 79% | View |
Submit your RFQ for AD7949BCPZ and get a quote within 24 hours.
