DAC, PARALLEL, WORD INPUT

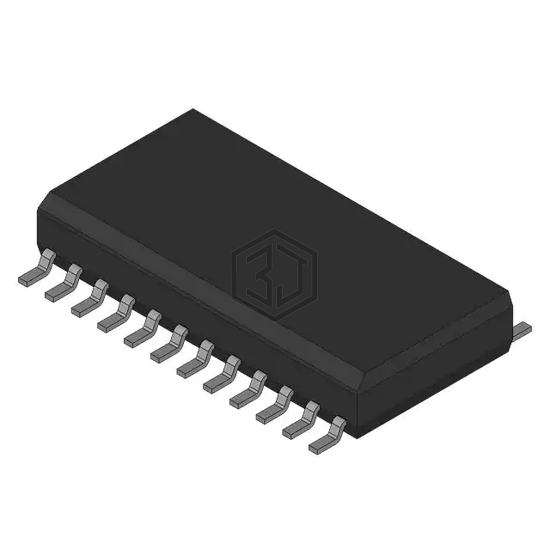

AD7845KR-REEL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. DAC, PARALLEL, WORD INPUT. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital ±14.25V ~ 15.75V, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 2,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | ±14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7845JPZ-REEL | Analog Devices Inc. | IC DAC 12BIT V-OUT 28PLCC | 100% | View |
| MX7845JP+ | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT MULT 28-PLCC | 100% | View |
| MAX502AEWG+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 24SOIC | 100% | View |
| DAC8881SRGETG4 | Texas Instruments | IC DAC 16BIT V-OUT 24VQFN | 96% | View |
| MAX547ACMH+T | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 44MQFP | 77% | View |
| PM7226BRC/883C | Analog Devices Inc. | 8-BIT DAC WITH VOLTAGE OUTPUT | 75% | View |
Submit your RFQ for AD7845KR-REEL and get a quote within 24 hours.
