IC DAC 12BIT V-OUT 24CDIP

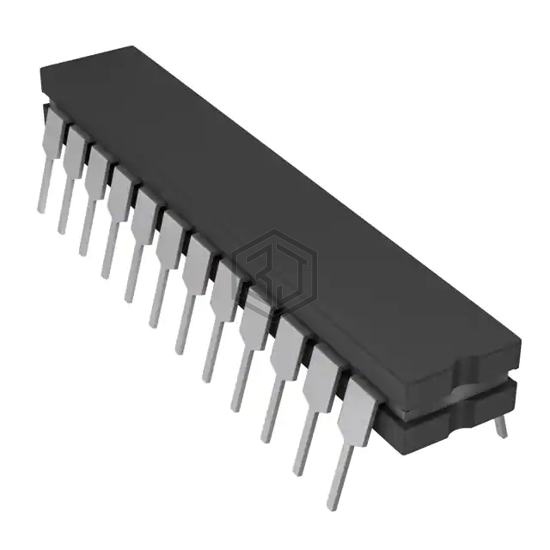

AD7845BQ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 12BIT V-OUT 24CDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply, analog ±14.25V ~ 15.75V, package / case 24-CDIP (0.300", 7.62mm).
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | - |
| INL/DNL (LSB) | ±0.75 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 24-CDIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7837ANZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24DIP | 90% | View |
| AD7847SQ | Analog Devices Inc. | DAC, 2 CH, PARALLEL, WORD INPUT | 90% | View |
| AD7837BNZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24DIP | 90% | View |
| AD7847AQ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24CDIP | 90% | View |
| AD7847BNZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 24DIP | 90% | View |
| PM7226AFR | Analog Devices Inc. | 8-BIT DAC WITH VOLTAGE OUTPUT | 75% | View |
Submit your RFQ for AD7845BQ and get a quote within 24 hours.
