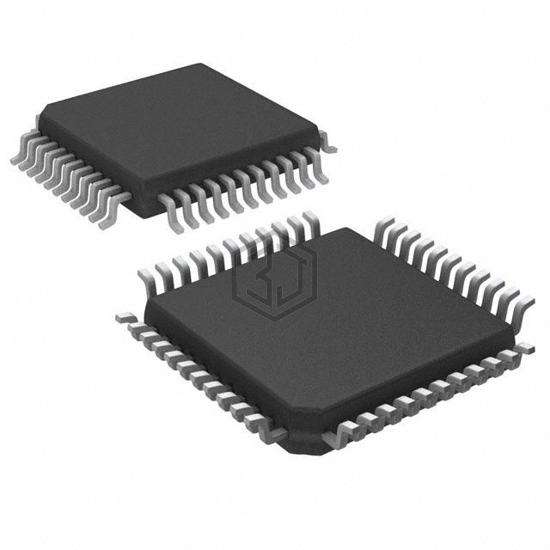

IC DAC 14BIT V-OUT 44MQFP
AD7836ASZ is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.
In Stock: 9,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Settling Time | 16µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX5253BEAP | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 20SSOP | 92% | View |
| MAX5501AGAP+T | Analog Devices Inc./Maxim Integrated | IC DAC 12BIT V-OUT 20SSOP | 92% | View |
| MAX5150BEEE+T | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 16QSOP | 91% | View |
| MAX5150BEEE+ | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 16QSOP | 91% | View |
| MAX5151AEEE+ | Analog Devices Inc./Maxim Integrated | IC DAC 13BIT V-OUT 16QSOP | 84% | View |
| AD5570WRSZ-REEL7 | Analog Devices Inc. | IC DAC 16BIT V-OUT 16SSOP | 79% | View |
Submit your RFQ for AD7836ASZ and get a quote within 24 hours.
