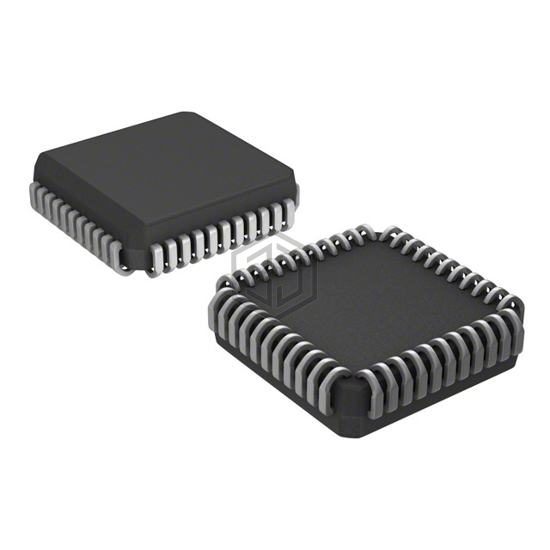

IC DAC 14BIT V-OUT 44PLCC
AD7835AP is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 44PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-LCC (J-Lead).
In Stock: 826
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Settling Time | 10µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±11.4V ~ 12.6V, ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-LCC (J-Lead) |
| Supplier Device Package | 44-PLCC (16.59x16.59) |
| Mounting Type | Surface Mount |
AD7835AP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DAC7725UG4 | Texas Instruments | IC DAC 12BIT V-OUT 28SOIC | 98% | View |
| DAC8412FPC | Analog Devices Inc. | IC DAC 12BIT V-OUT 28PLCC | 98% | View |
| DAC7614UBG4 | Texas Instruments | IC DAC 12BIT V-OUT 16SOIC | 98% | View |
| MAX5250AEAP | Analog Devices Inc./Maxim Integrated | IC DAC 10BIT V-OUT 20SSOP | 96% | View |
| AD5326BRUZ | Analog Devices Inc. | IC DAC 12BIT V-OUT 16TSSOP | 90% | View |
| LTC2606IDD#PBF | Analog Devices Inc. | IC DAC 16BIT V-OUT 10DFN | 76% | View |
Submit your RFQ for AD7835AP and get a quote within 24 hours.
